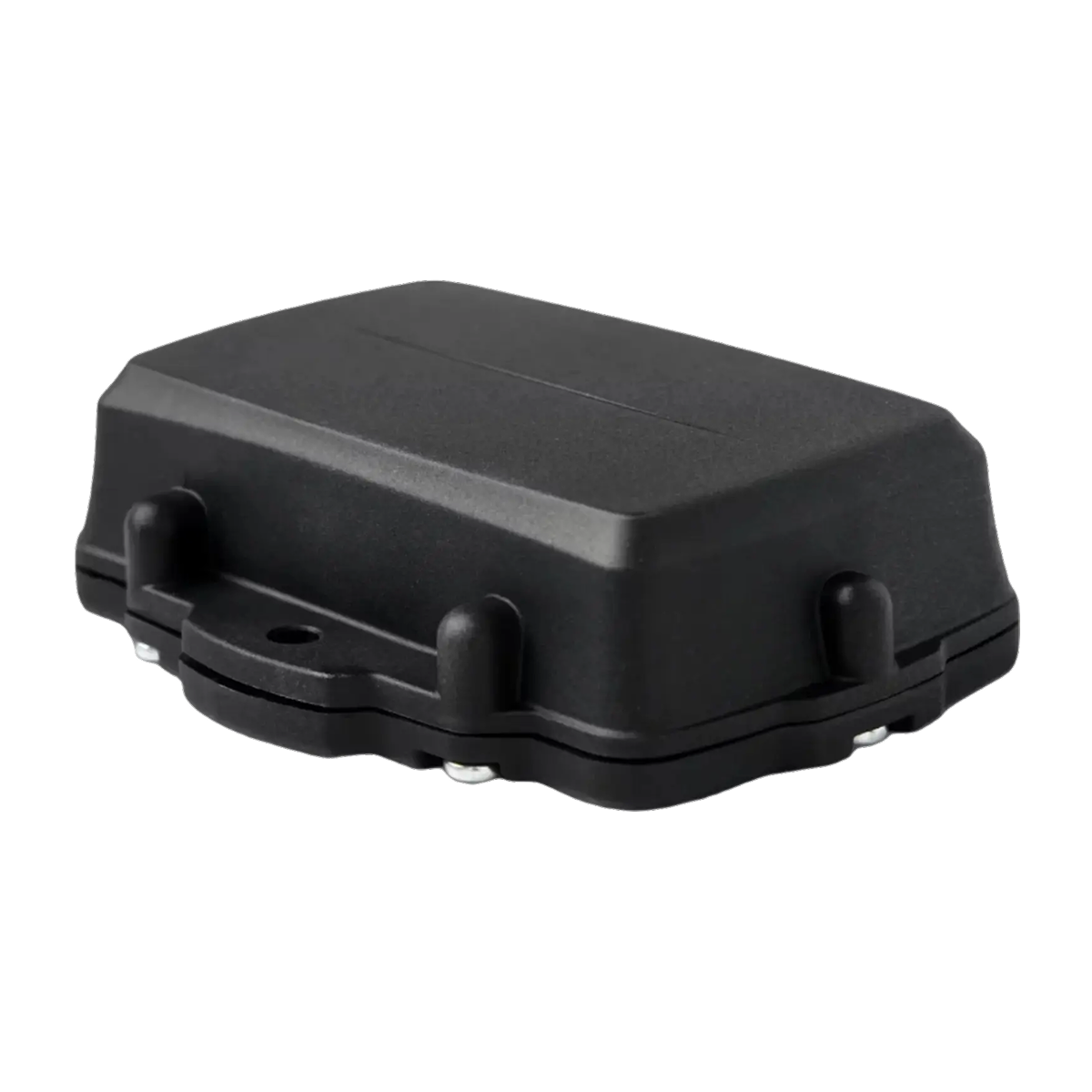

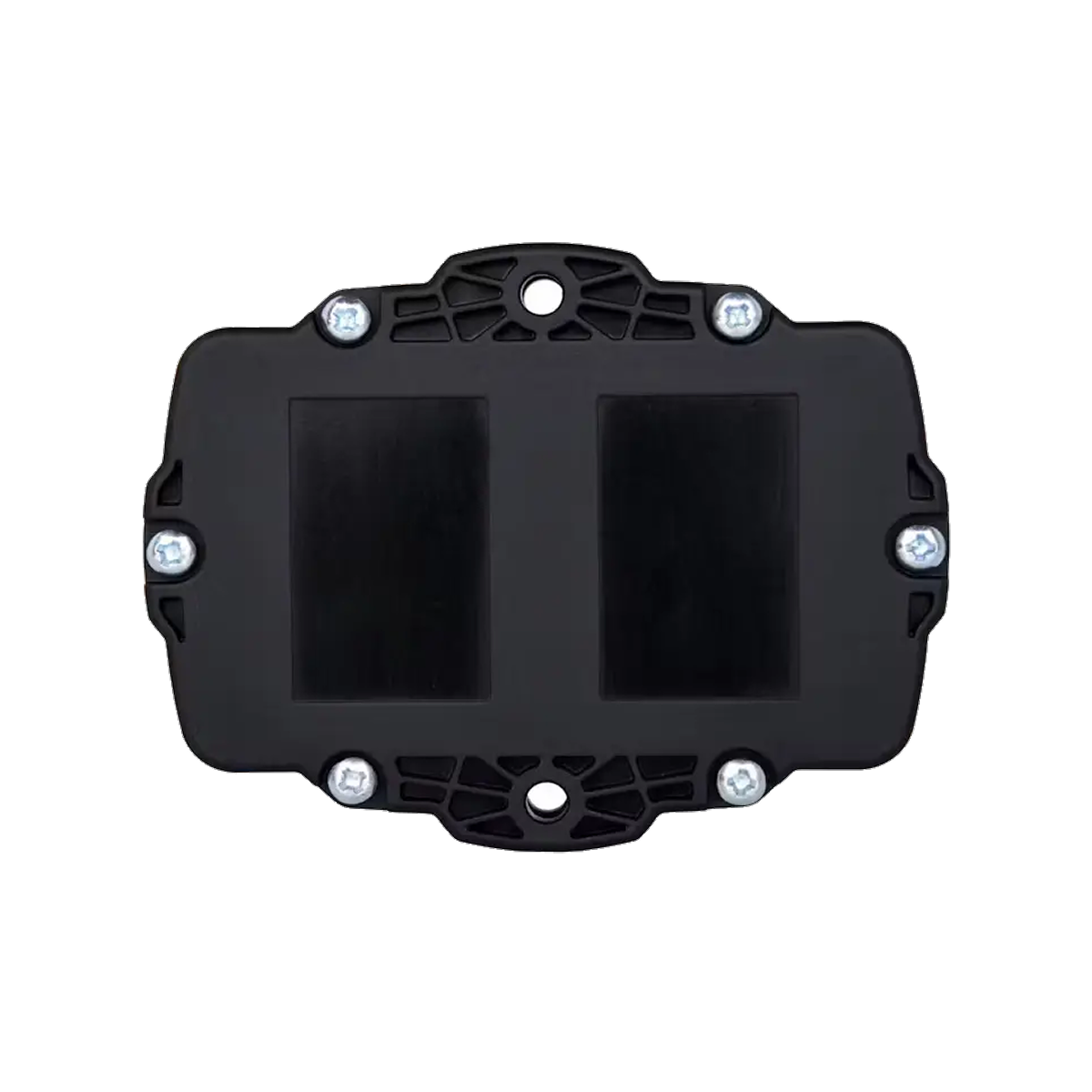

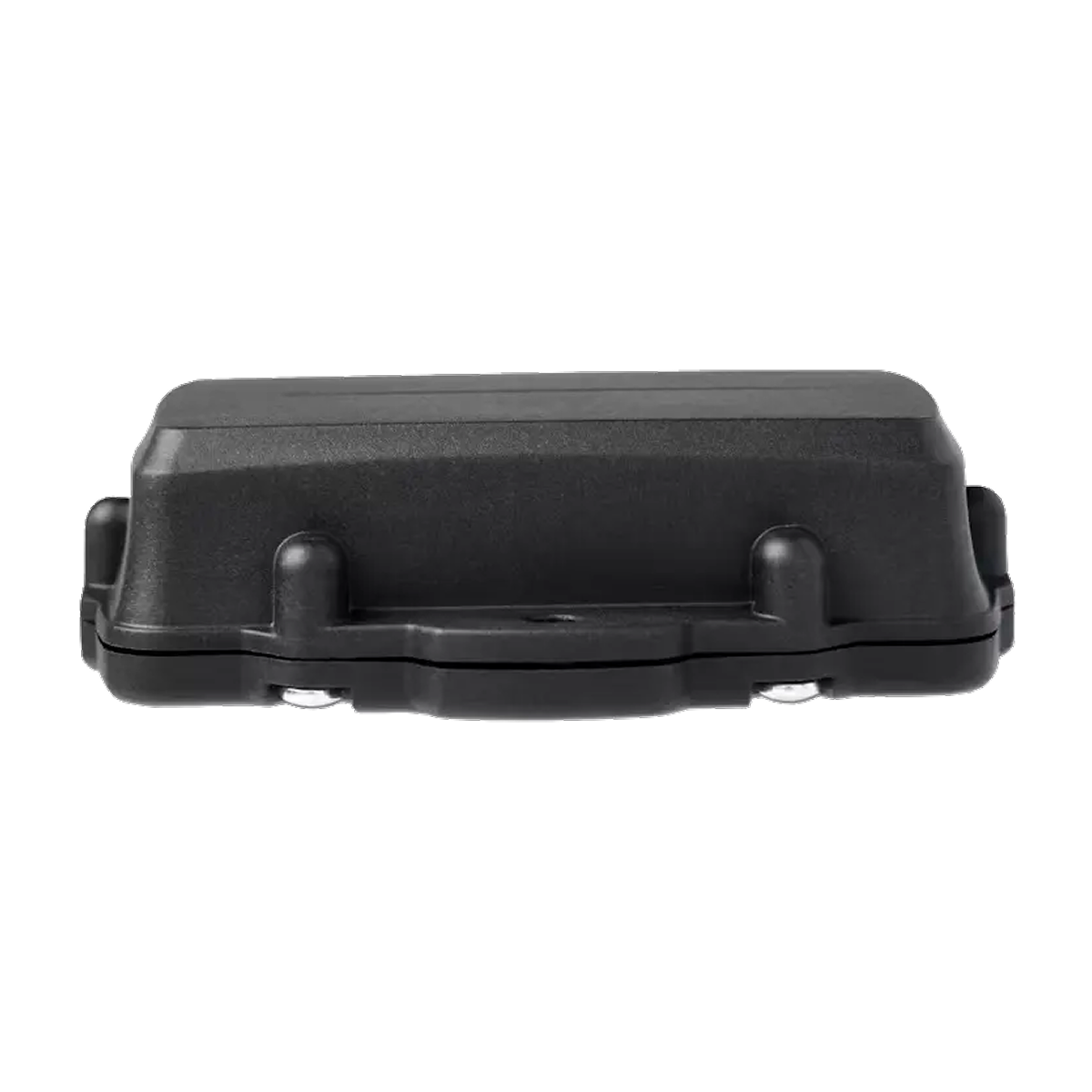

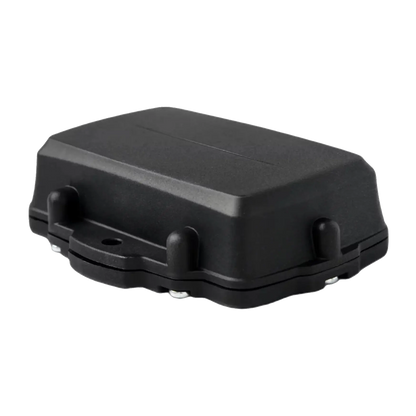

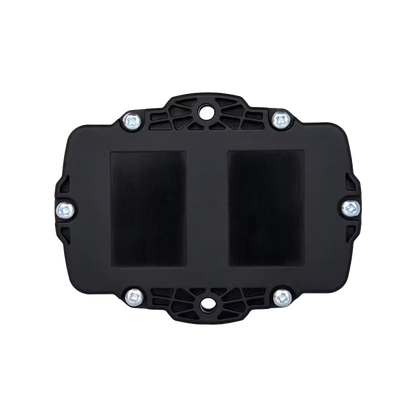

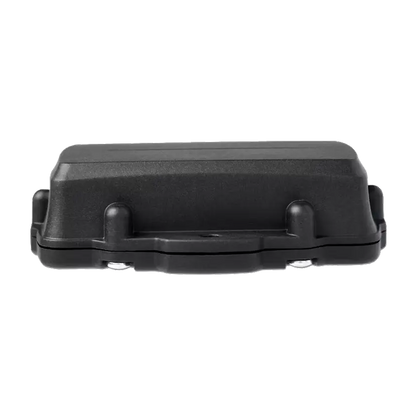

Yabby Edge LTE-M (Cat-M1) / NB-IoT

The Yabby Edge Cellular is a compact, ultra-rugged battery-powered asset tracker built for reliable indoor and outdoor visibility. Leveraging LTE-M / NB-IoT connectivity along with hybrid location technology (GNSS, Wi-Fi AP scanning, and Cell Tower fallback), it delivers powerful performance with minimal maintenance.

Use Cases – Where Yabby Edge Cellular Shines

Yabby Edge Cellular is ideal for assets that move across diverse environments, including:

• Construction tools and equipment on job sites
• Containers, pallets, and warehouse inventory
• Industrial machines and fixed plant assets
• Rental equipment, trailers, and storage units
• Assets that transition between indoor and outdoor areas

With a battery life of up to 10+ years using 3 × AAA user-replaceable batteries, this tracker is perfect for long-term “set and forget” deployments.

Key Features – Why Yabby Edge Cellular Stands Out

• 🔋 Long-life battery: Up to 10+ years with 3 × AAA Lithium batteries.
• 📍 Hybrid positioning: GNSS + Wi-Fi AP scanning + Cell Tower fallback for full indoor/outdoor coverage.
• 🛡️ Rugged, weatherproof design: IP68 and IK06 ratings ensure durability in tough operating environments.
• ☁️ Cloud-based location solving: Reduces power consumption and increases battery efficiency.
• 🤖 Adaptive tracking modes: Frequent reporting during movement, ultra-low-power sleep when stationary.
• ⚠️ Smart alerts: Battery low, movement detection, impact, utilization monitoring, and maintenance reminders.
• 🔧 Easy installation: Small form factor; can be mounted using screws, cable ties, bolts, rivets, or adhesive.

Technical Specifications – Quick Overview

• Connectivity: LTE-M (Cat-M1) / NB-IoT
• Location Methods: GNSS (GPS/BeiDou), Wi-Fi AP scanning, Cell Tower fallback
• Typical Accuracy:
  • GNSS: ~5–80 m
  • Wi-Fi: ~10–100 m
  • Cell Tower: ~250 m – 1+ km
• Power: 3 × AAA Lithium batteries (user-replaceable)
• Housing Rating: IP68 (water/dustproof), IK06 (impact resistant)
• Sensors: 3-axis accelerometer (movement, impact, tilt), utilization tracking
• Form Factor: Lightweight, compact, designed for covert installations

Installation Guide – Simple and Fast

• Choose a secure mounting location on the asset (frame, wall, casing, or compartment).
• Install using screws, rivets, bolts, cable ties, or adhesive depending on the application.
• Insert 3 AAA Lithium batteries and activate the device.
• Add the device ID/IMEI to your MapTrack dashboard for registration.
• Configure location update intervals, movement sensitivity, geofences, and alert rules.

MapTrack Integration – Seamless Asset Visibility

When integrated with MapTrack, Yabby Edge Cellular enables:

• Scheduled location updates and full movement history
• Geofence entry/exit alerts
• Battery and tamper notifications
• Asset utilization and maintenance monitoring
• Asset distribution mapping across sites, projects, or warehouses
• API integration with ERP, rental systems, and maintenance tools

This gives teams a unified platform to view and manage all assets in real time.

Why Choose Yabby Edge Cellular?

• Excellent balance of size, durability, and battery efficiency
• Indoor/outdoor tracking flexibility with hybrid location technology
• Extremely long battery life for low-maintenance deployments
• Compact rugged design for covert or exposed installations
• Cost-effective for long-term asset management
• Fully compatible with MapTrack’s tracking ecosystem

Best-Fit Industries

• Construction & civil engineering
• Logistics, warehousing, & distribution
• Manufacturing & industrial operations
• Equipment rental & tool management
• Agriculture & mining
• Supply chain & container operations
